Products
Six product families covering programmable logic, programmable SoC, LED display control ICs, DDR memory, development hardware and PCB manufacturing.

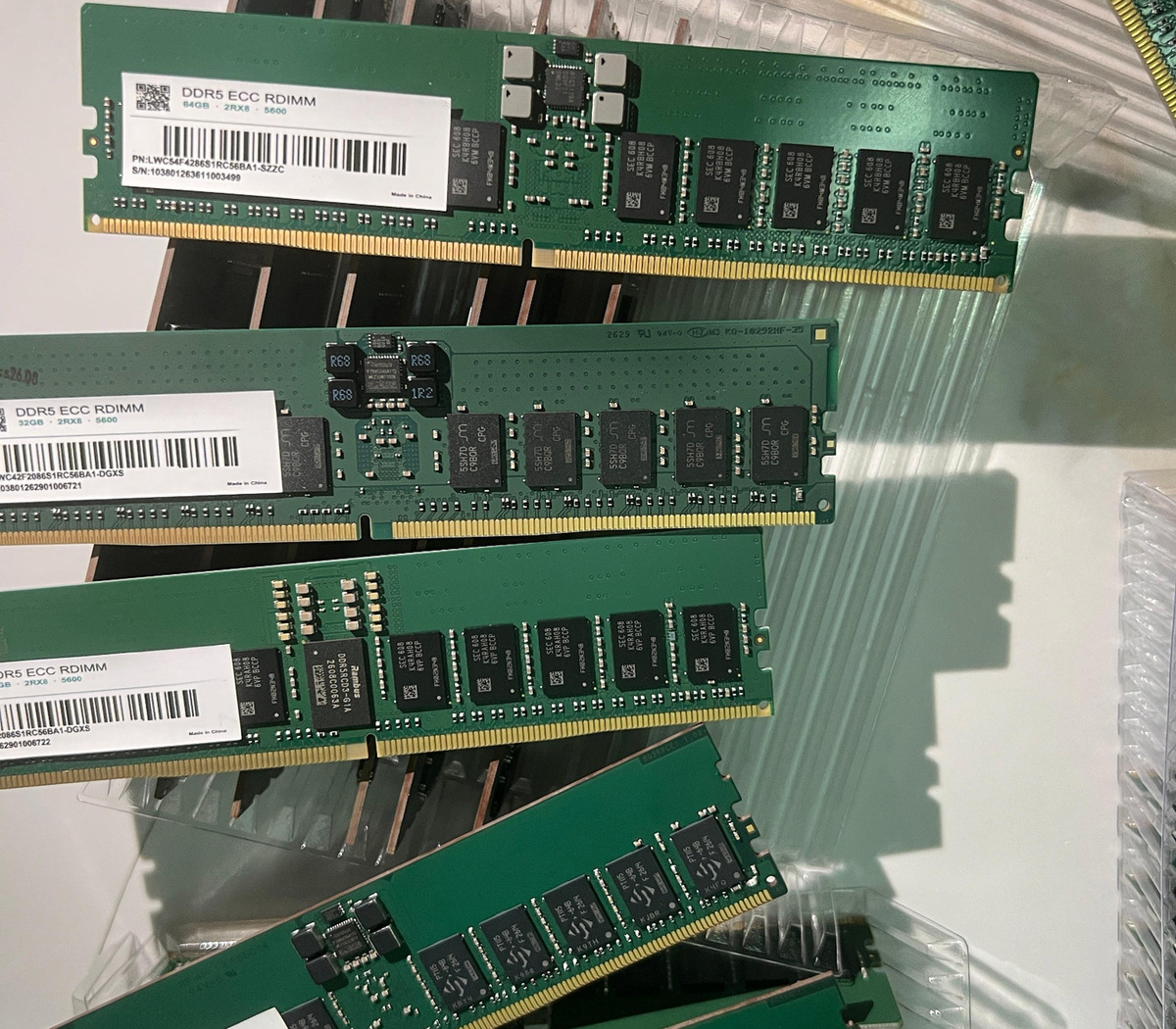

Memory ICs / DRAM
DDR4 · DDR5DDR4 and DDR5 from Samsung, SK hynix, Micron and Spectek
View products
Development Boards & Modules
Boards · ModulesBoards and core modules for the FCE, FCS, FCF and EQ6S7 series
View products

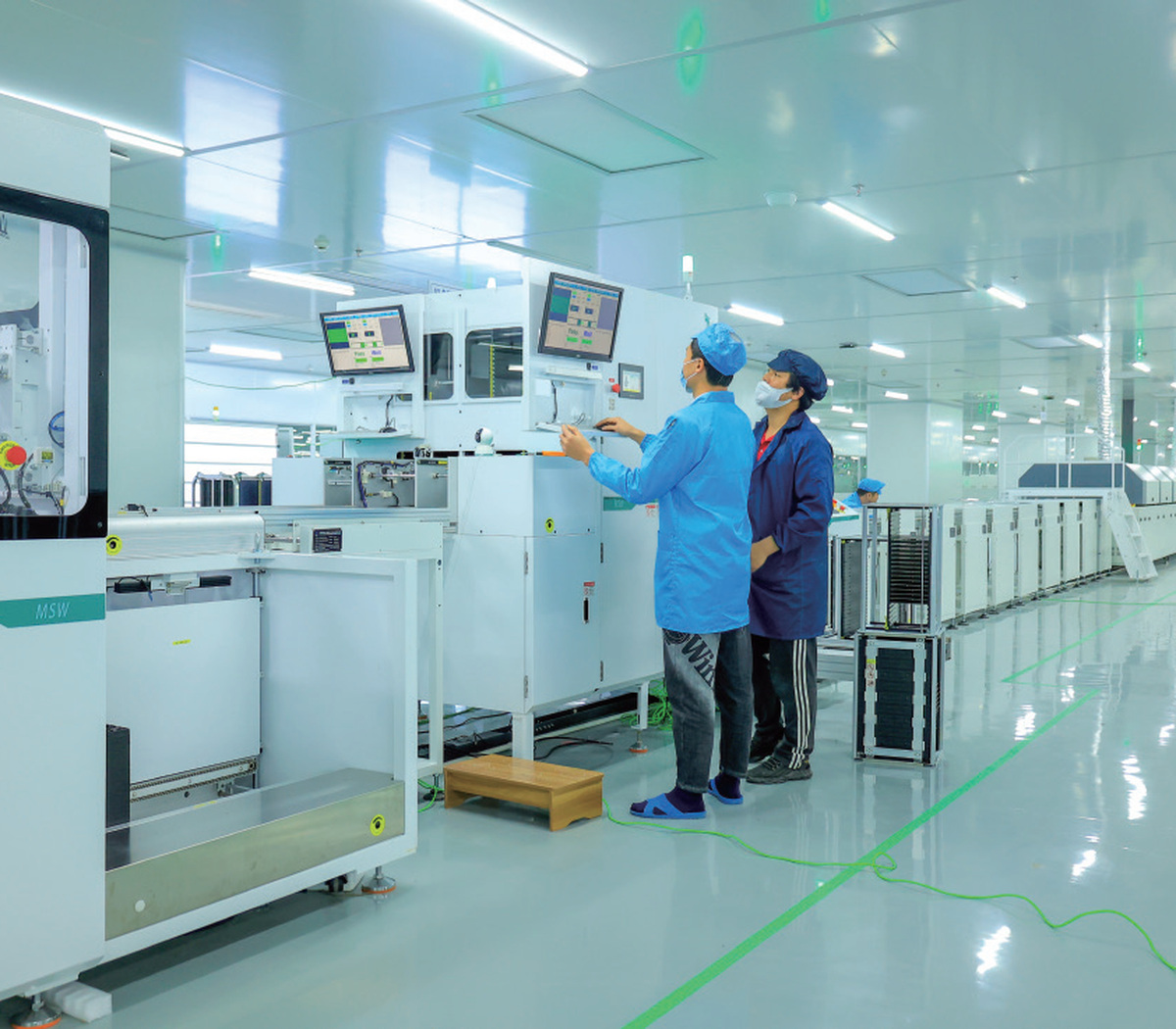

PCB Manufacturing
4 countriesPartner fabrication in Vietnam, Mexico, Romania and Italy
View productsSelection guide

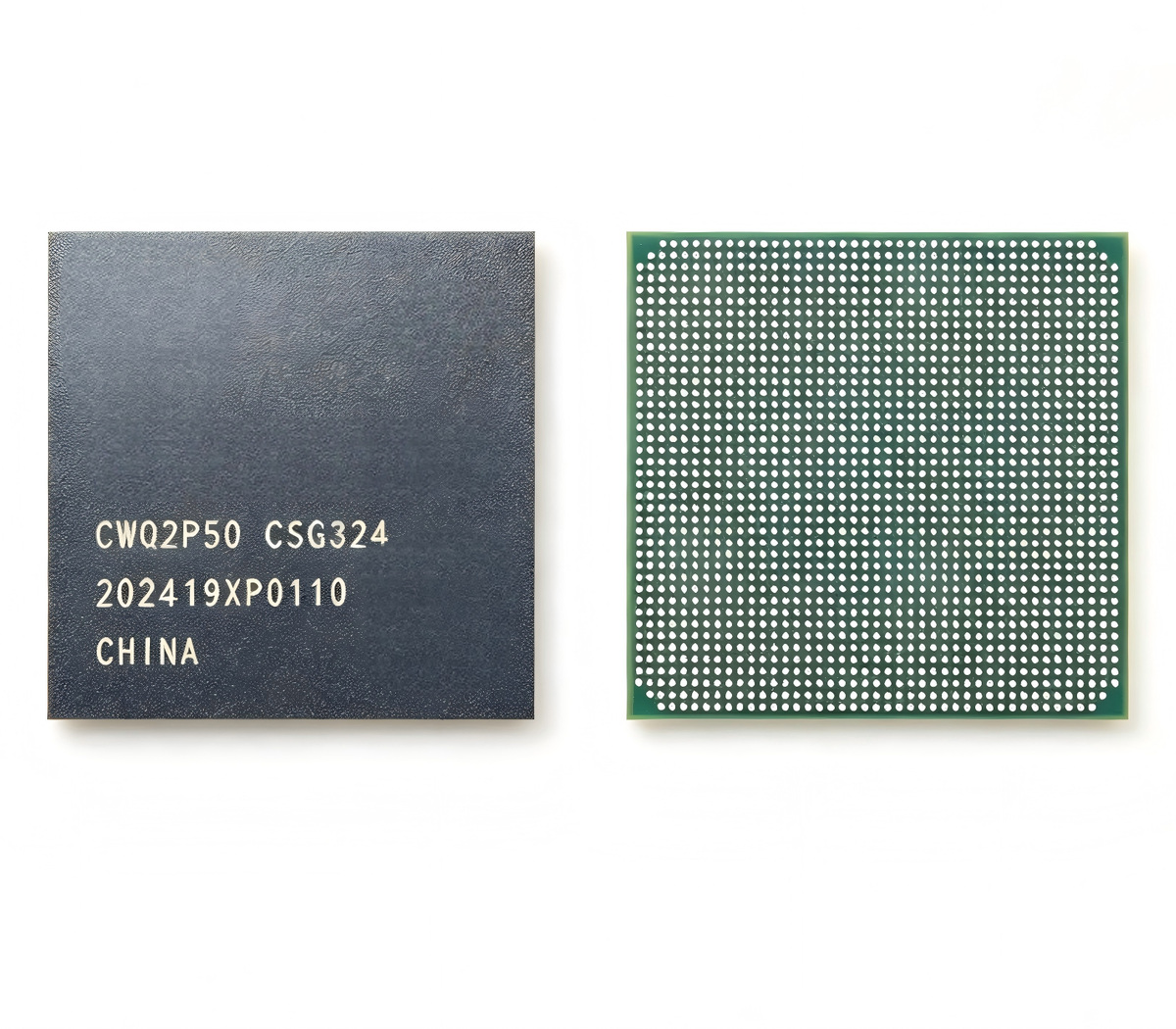

FPGA range at a glance
Every FPGA ordering code we hold, with its package, resources and grade. Tell us the logic density, SerDes lanes and package your design needs and we will confirm availability in the quotation.
FPGA selection comparison
| Device | Package type | Process node | Logic cells | DSP slices | BRAM capacity (Mb) | Clock management tiles | SerDes | PCIe | Max user I/O | Core voltage (V) | Package size (mm×mm) | Quality grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FCE005 | FCE005-FGG484 | 28 nm | 52K | 120 | 2.7 | 5 | — | — | 250 | 0.9 / 1.0 | 23 × 23 | Industrial Grade / Wide-Temperature Industrial Grade |
| FCE005-CSG324 | 28 nm | 52K | 120 | 2.7 | 5 | — | — | 210 | 0.9 / 1.0 | 15 × 15 | Industrial Grade / Wide-Temperature Industrial Grade | |
| FCE005T | FCE005T-CSG324 | 28 nm | 52K | 120 | 2.7 | 5 | — | — | 210 | 0.9 / 1.0 | 15 × 15 | Industrial Grade / Wide-Temperature Industrial Grade |
| FCS030T | FCS030T-FFG900 | 28 nm | 326K | 840 | 16 | 10 | 16 lanes 12.5Gbps | 1 (supports up to x8 Gen2) | 500 | 0.9 / 1.0 | 31 × 31 | Industrial Grade / Wide-Temperature Industrial Grade |
| FCS030T-FFG676 | 28 nm | 326K | 840 | 16 | 10 | 8 lanes 12.5Gbps | 1 (supports up to x8 Gen2) | 400 | 0.9 / 1.0 | 27 × 27 | Industrial Grade / Wide-Temperature Industrial Grade | |
| FCF069T | FCF069T-FFG1927 | 28 nm | 693K | 3600 | 53 | 20 | 80 lanes 13.1Gbps | 3 (supports up to x8 Gen3) | 600 | 0.9 / 1.0 | 45 × 45 | Industrial Grade / Wide-Temperature Industrial Grade |
| FCF069T-FFG1761 | 28 nm | 693K | 3600 | 53 | 20 | 36 lanes 13.1Gbps | 3 (supports up to x8 Gen3) | 850 | 0.9 / 1.0 | 42.5 × 42.5 | Industrial Grade / Wide-Temperature Industrial Grade | |
| FCF069T-FFG1157 | 28 nm | 693K | 3600 | 53 | 20 | 20 lanes 13.1Gbps | 3 (supports up to x8 Gen3) | 600 | 0.9 / 1.0 | 35 × 35 | Industrial Grade / Wide-Temperature Industrial Grade |
All listed products are also available as bare dies. Availability, grade suffix and packaging for any line are confirmed in the written quotation.
All products
Showing 14 products and services

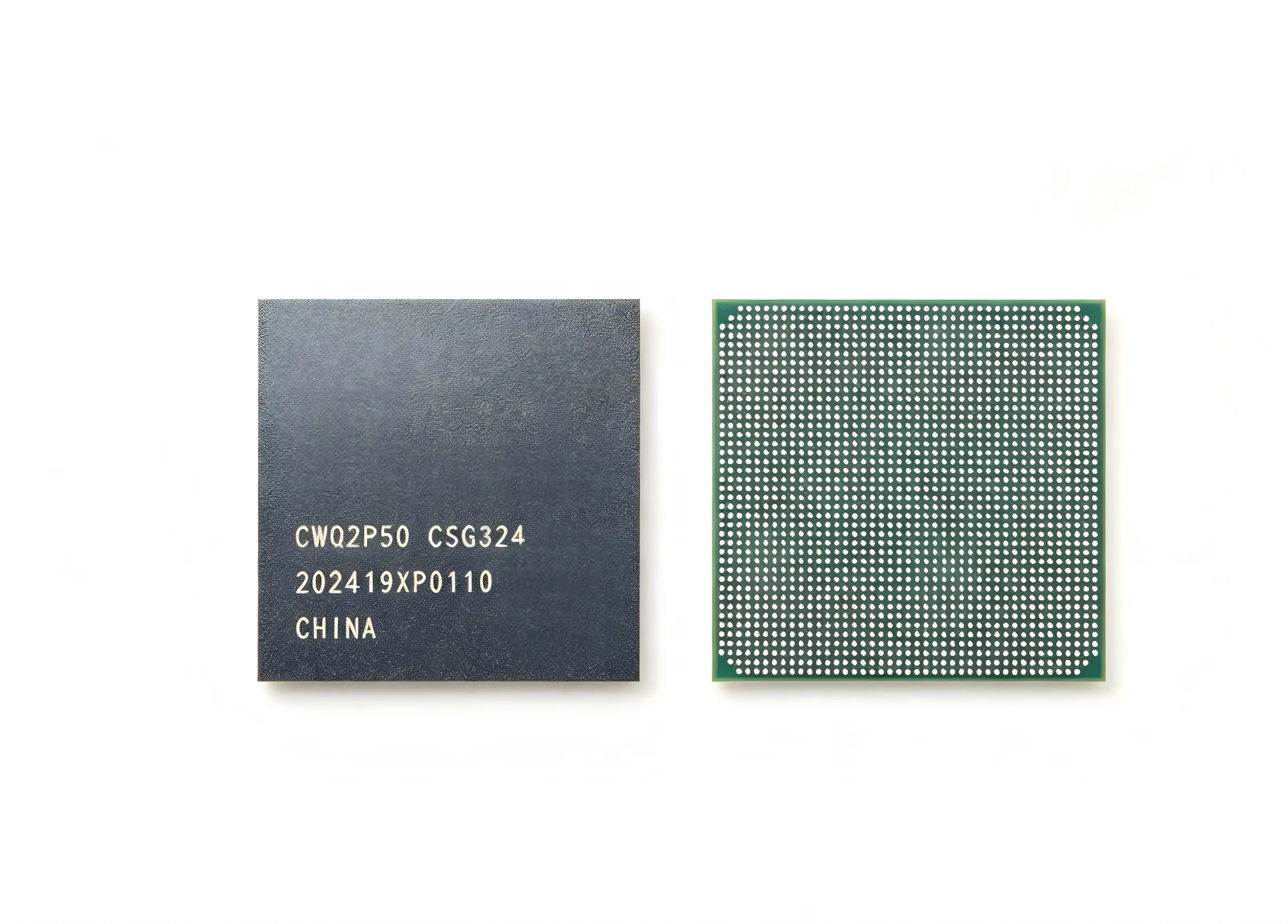

FCE005
FCE005 FPGA
52K logic cell FPGA in 28nm, offered in CSG324 and FGG484 packages, industrial a…

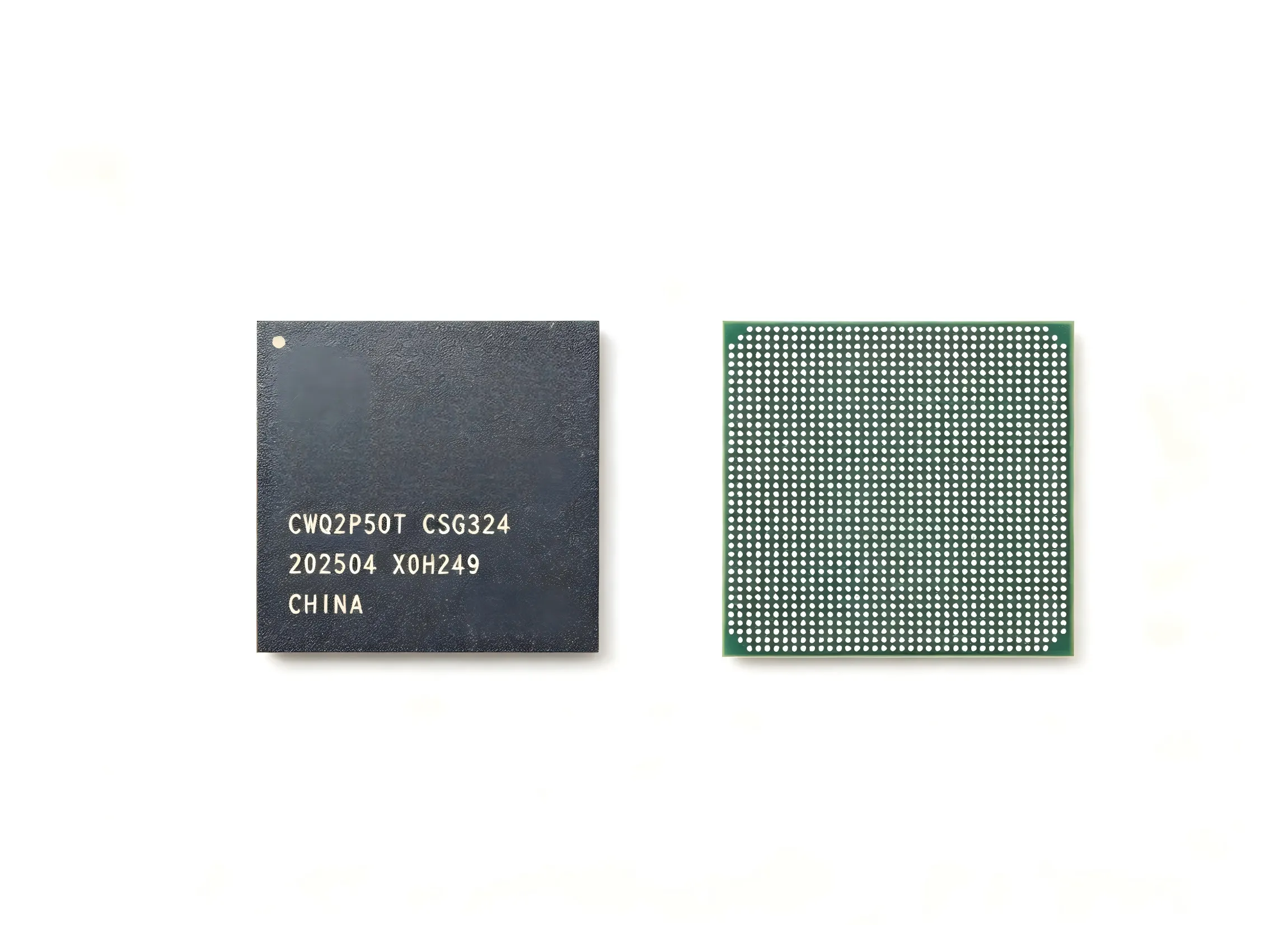

FCE005T
FCE005T FPGA
52K logic cell FPGA in 28nm with a CSG324 package, industrial and wide-temperatu…

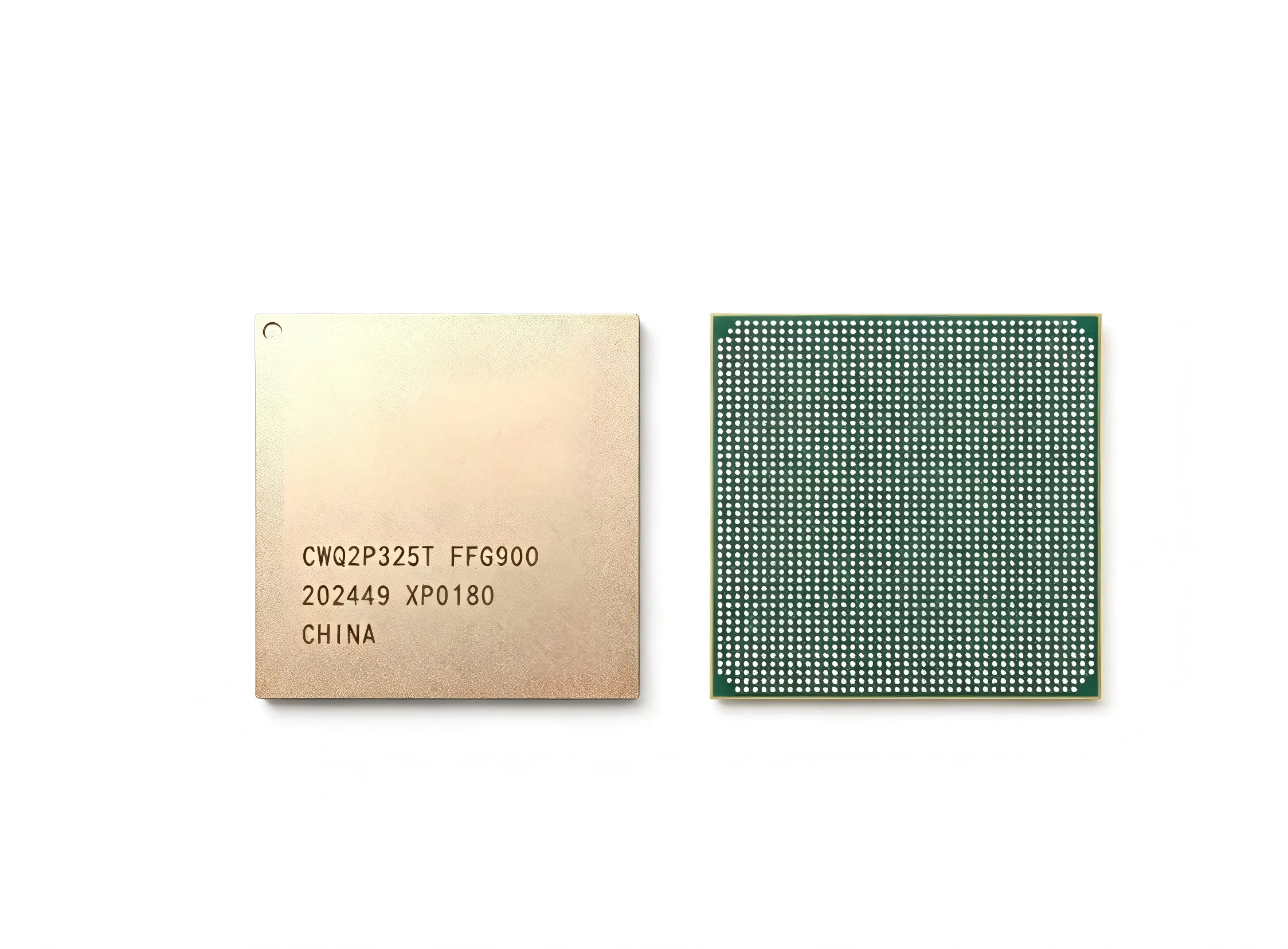

FCS030T
FCS030T FPGA
326K logic cell FPGA in 28nm with 16 SerDes lanes at 12.5 Gb/s and PCIe Gen2 x8.

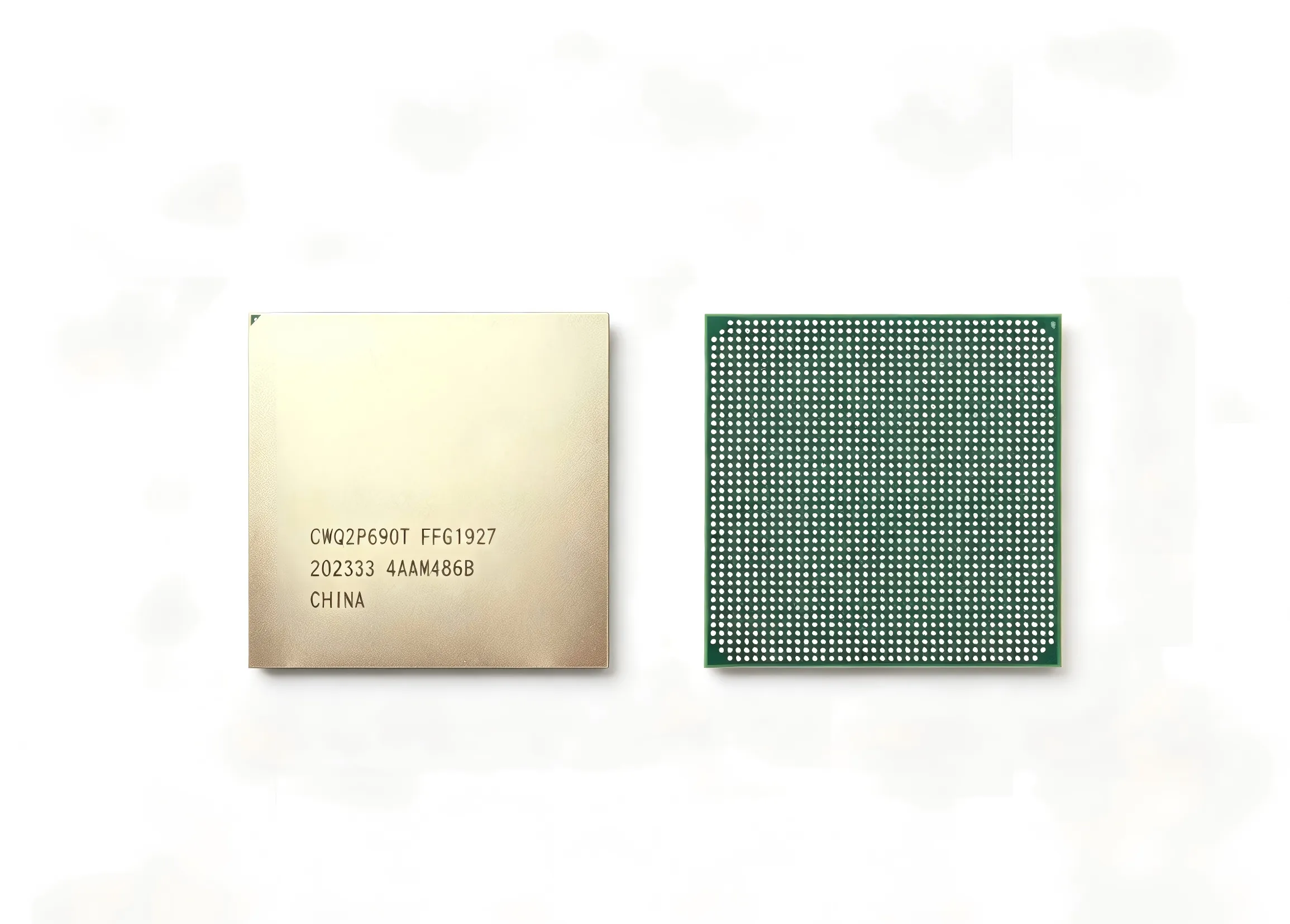

FCF069T
FCF069T FPGA
693K logic cell FPGA in 28nm with up to 80 SerDes lanes at 13.1 Gb/s and three P…

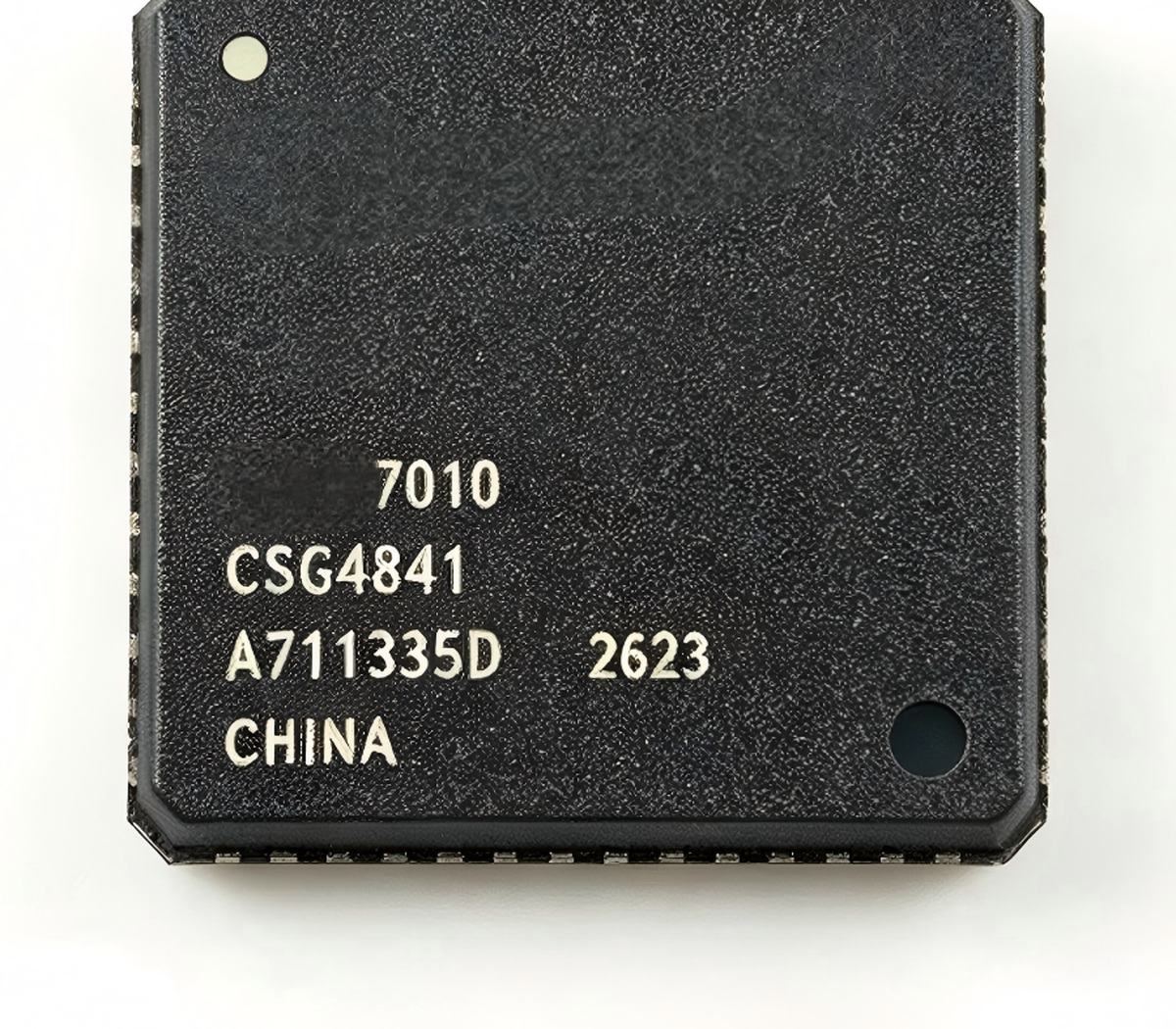

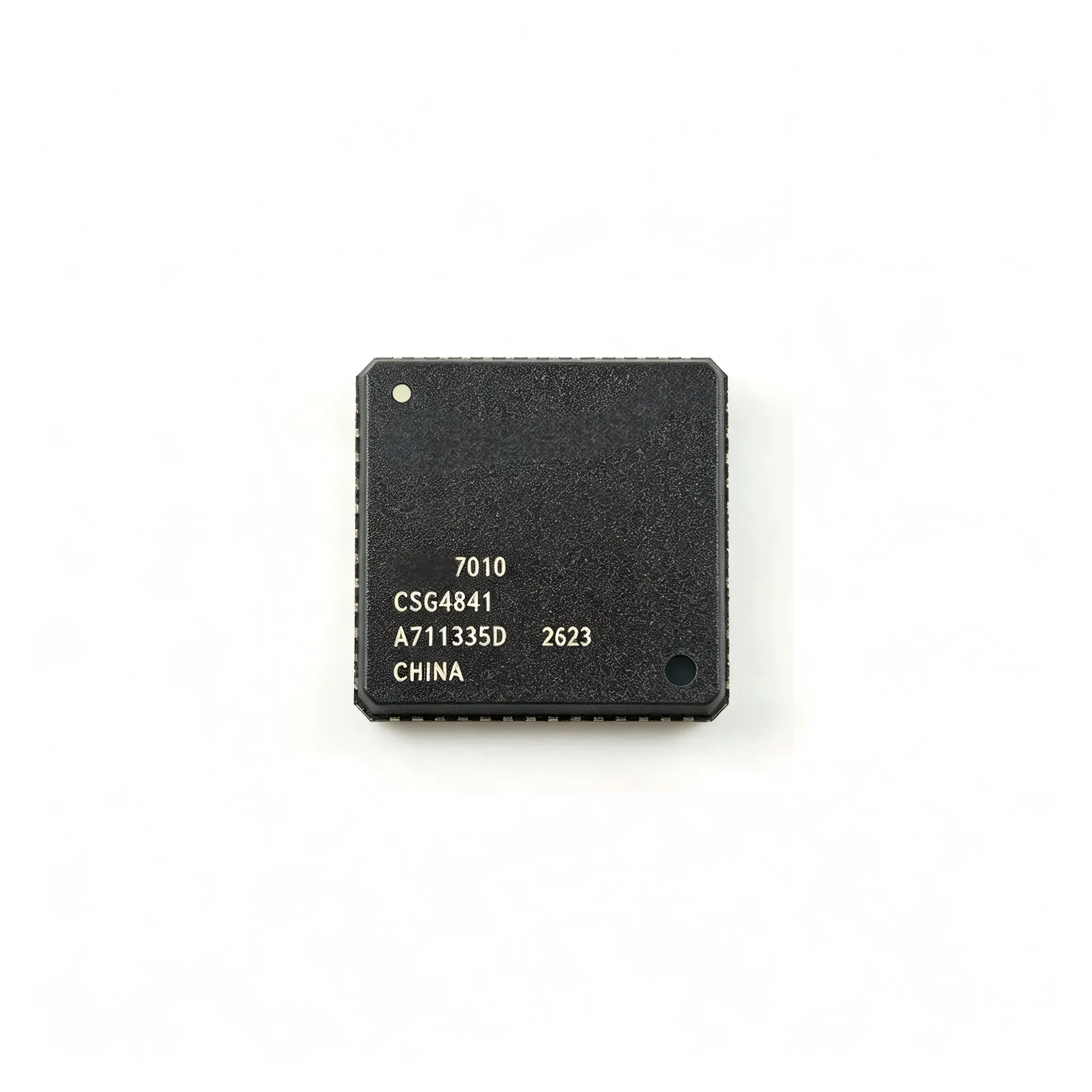

EQ6S7010
EQ6S7010 Programmable SoC
Programmable SoC with 42.5K LUT4 fabric, a 12-bit ADC/DAC subsystem, MIPI CSI an…

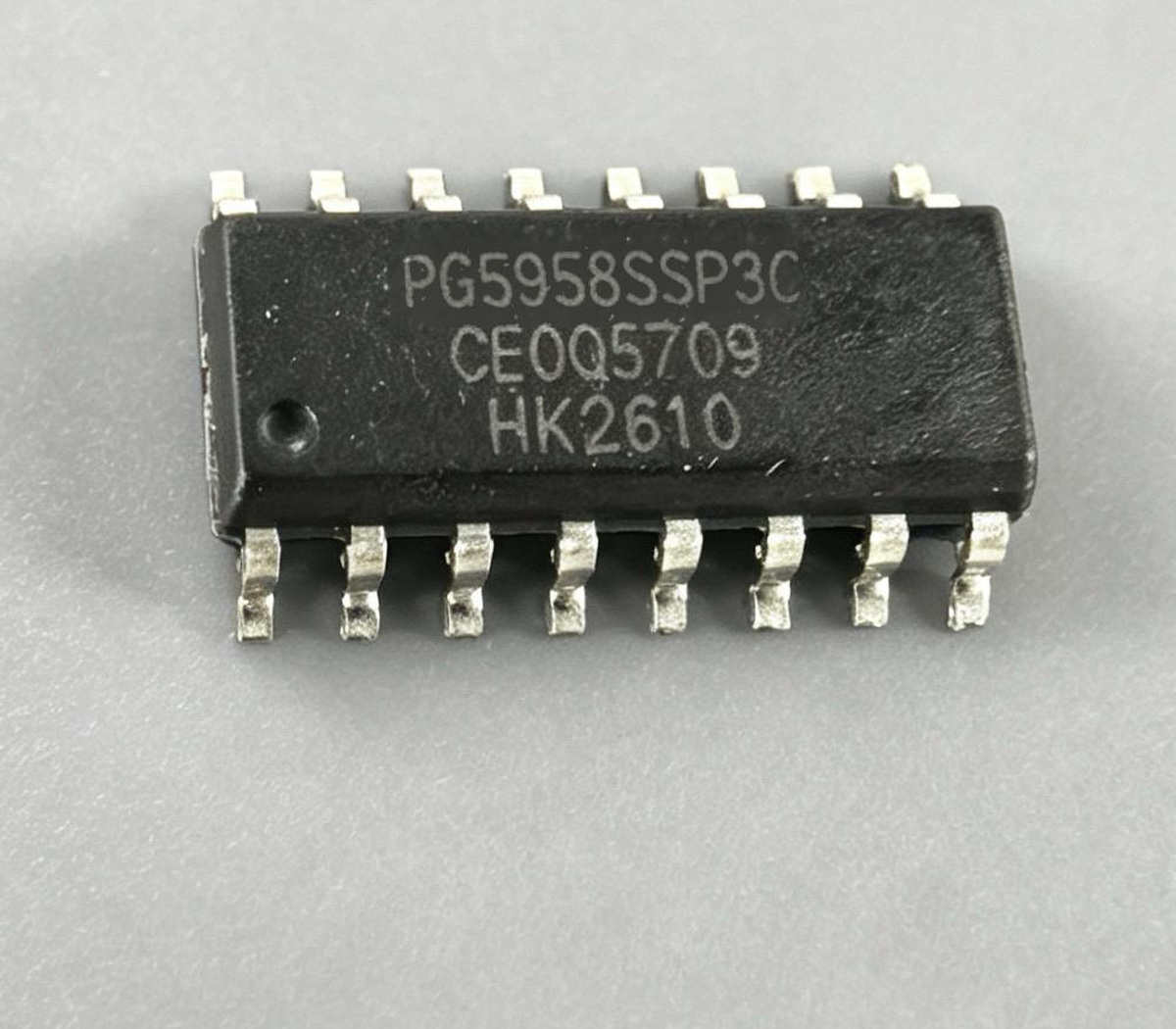

PG5958
PG5958 LED Display Driver IC
8-channel P-MOS integrated control IC for high-refresh LED displays, with ghosti…
PG59516
PG59516 LED Display Driver IC
16-channel P-MOS integrated control IC for high-refresh LED displays, replacing …

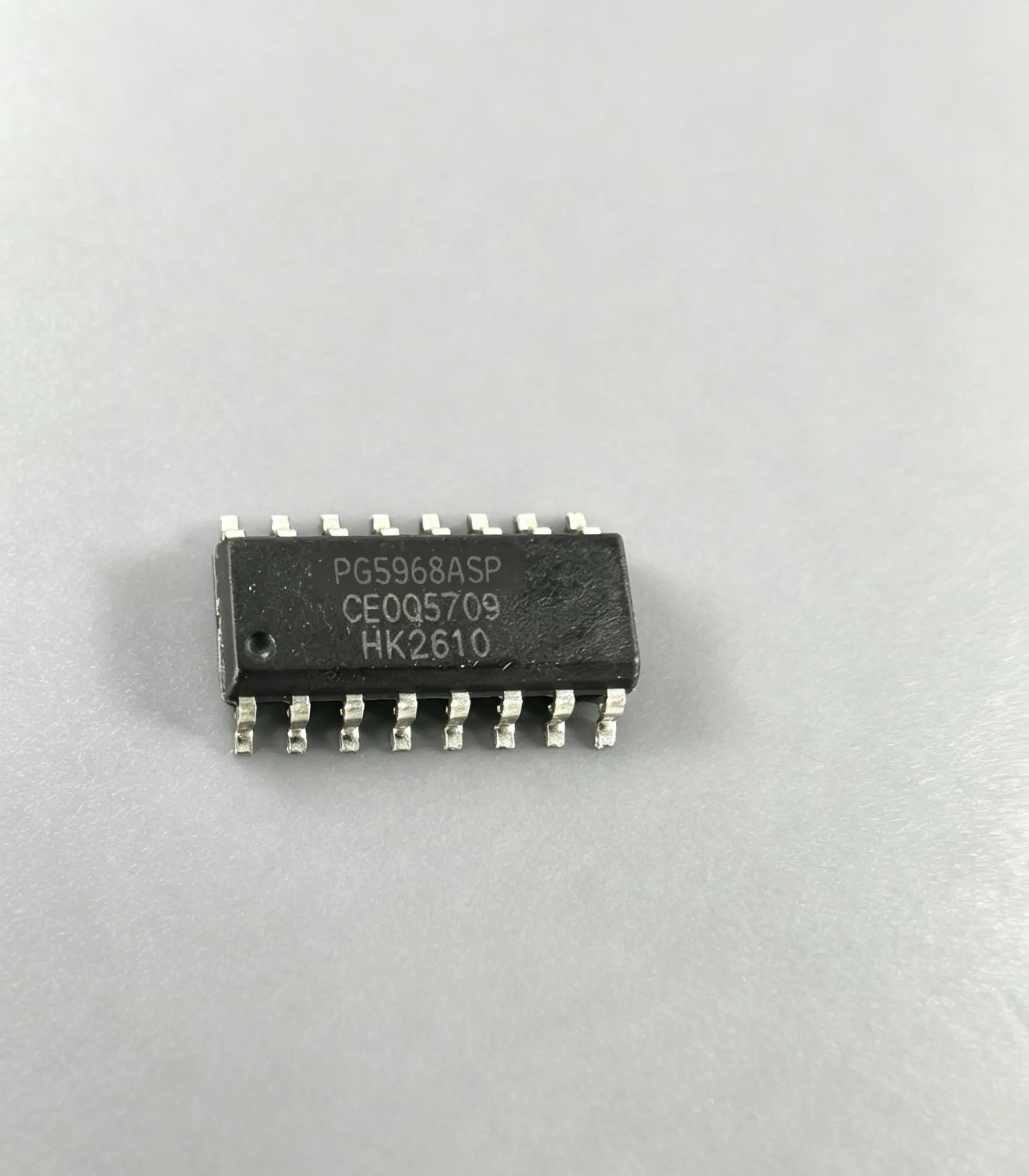

PG5968
PG5968 Common-Cathode LED Driver IC
8-channel N-MOS integrated control IC for common-cathode LED displays, with pre-…
PG59616
PG59616 Common-Cathode LED Driver IC
16-channel N-MOS control IC for common-cathode LED displays, with ghosting elimi…

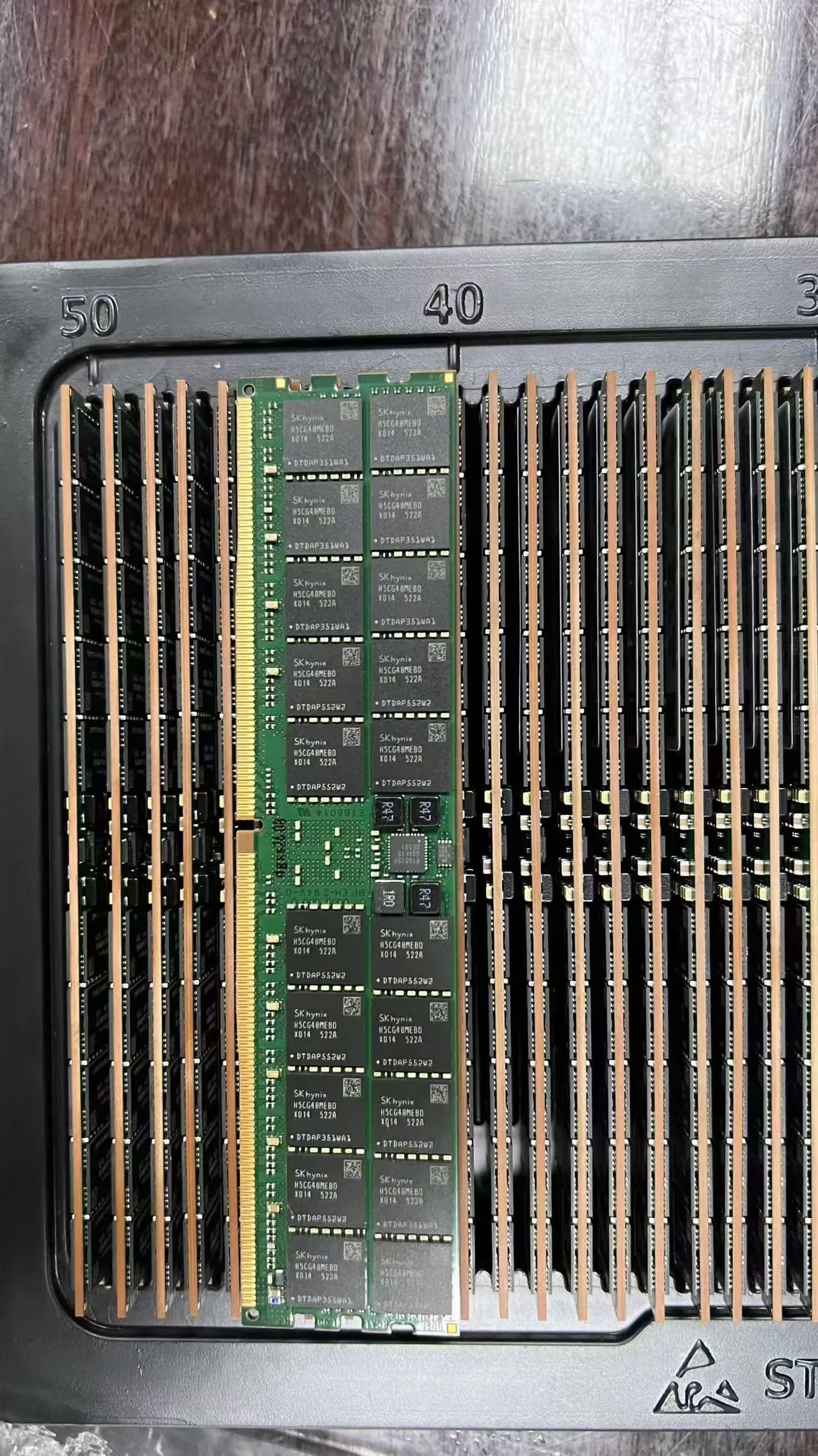

DDR4 (multi-brand)
DDR4 Memory ICs
DDR4 memory supplied from Samsung, SK hynix, Micron and Spectek, in 32 GB and 64…

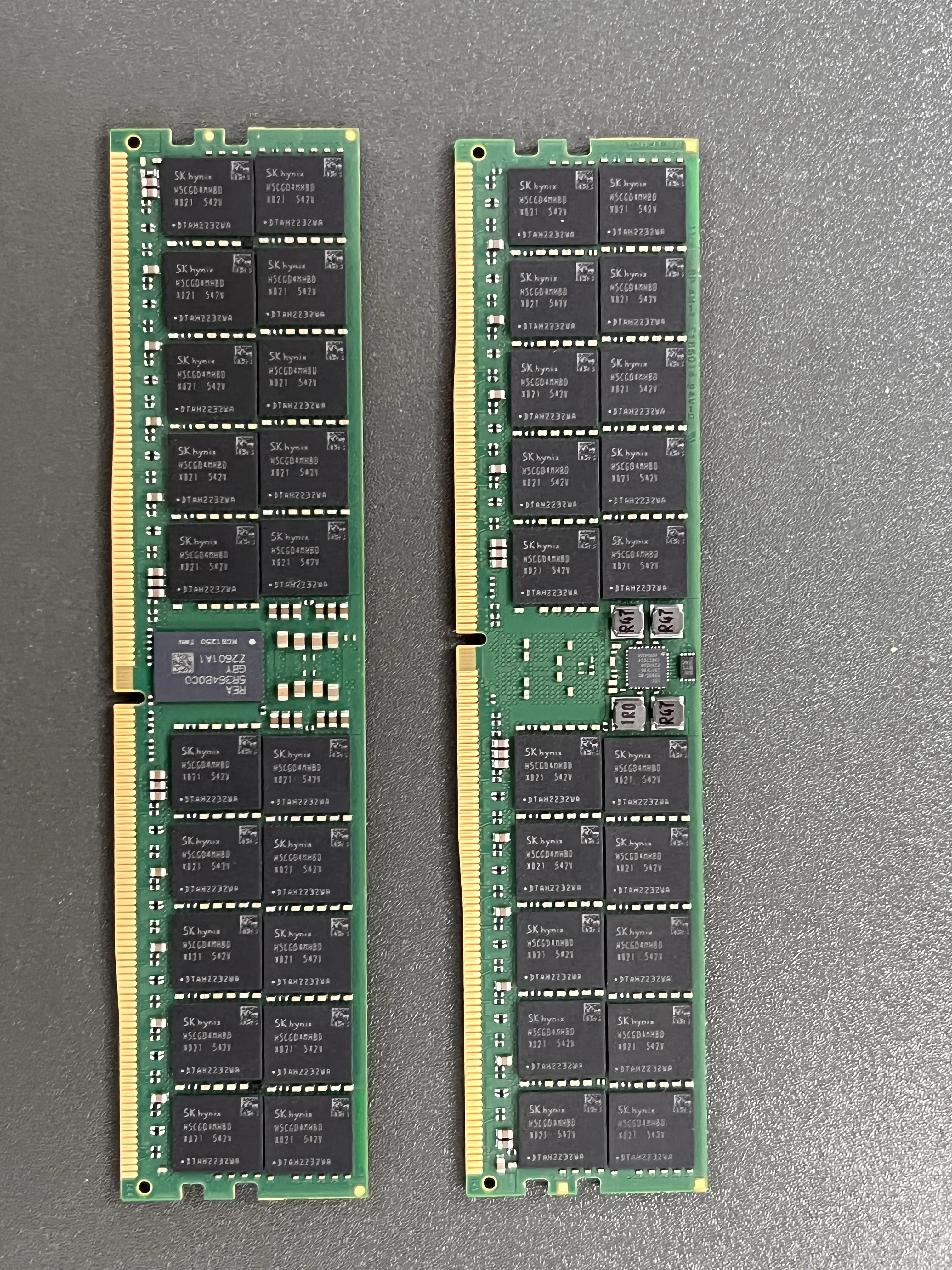

DDR5 (multi-brand)
DDR5 Memory ICs
DDR5 memory supplied from Samsung, SK hynix, Micron and Spectek, in 32 GB to 96 …

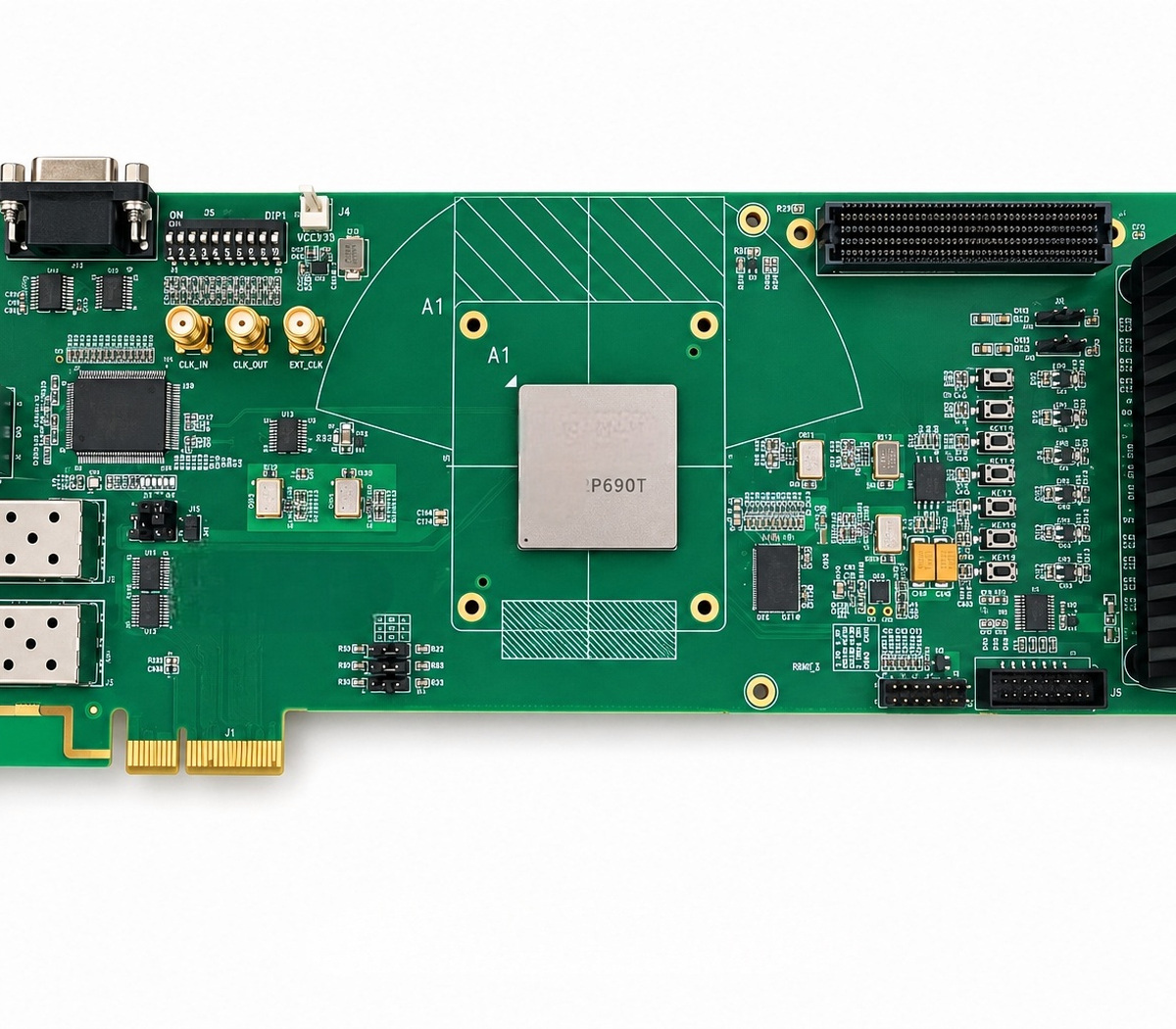

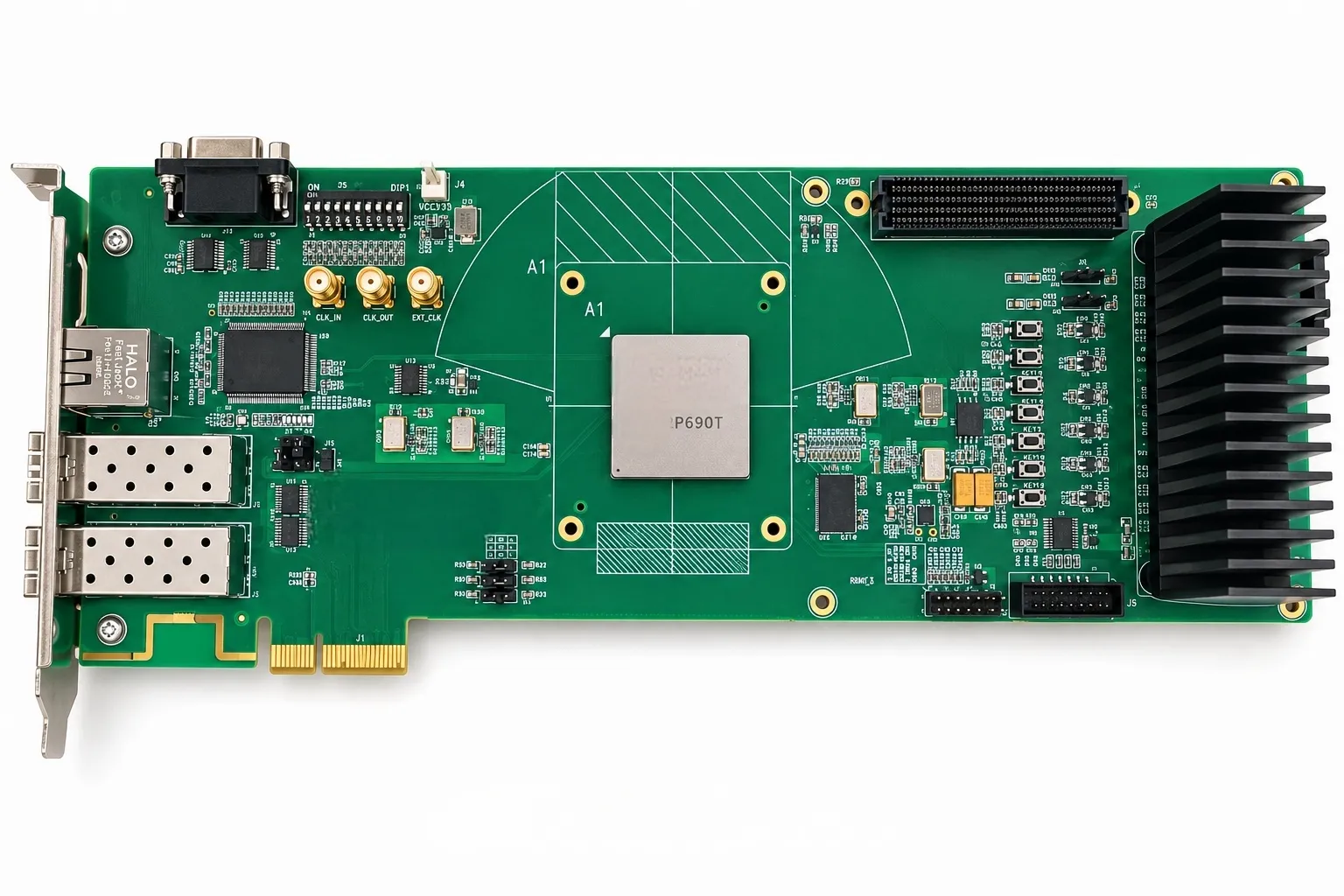

Development Board
FPGA / SoC Development Boards
Development boards for the FCE, FCS, FCF and EQ6S7 series, for prototyping, inte…
Request a quote
Send us the part numbers and quantities you need
Give the exact ordering code, the quantity and your target date. For FPGA and SoC parts, tell us whether you need industrial or wide-temperature industrial grade.
- Single part numbers or a full bill of materials
- FPGA and SoC selection support on request
- PCB fabrication quoted through our partner network
